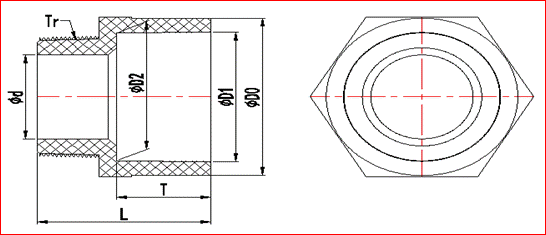

Size DN(De) | Dimension(mm) | ||||||
D0 | D1 | D2 | d | T | L | Tr | |
15(20) | 26.8 | 20.3 | 19.95 | 11.3 | 16.5 | 35 | 1/2" |
20(25) | 32.5 | 25.3 | 24.95 | 16.1 | 19 | 38.5 | 3/4" |
25(32) | 40.3 | 32.3 | 31.9 | 21.4 | 22.5 | 44.5 | 1" |
32(40) | 49.5 | 40.35 | 39.9 | 28.8 | 26.5 | 51 | 1-1/4" |
40(50) | 61.6 | 50.35 | 49.9 | 32.5 | 31.5 | 56.5 | 1-1/2" |
50(63) | 77 | 63.4 | 62.9 | 41.3 | 38 | 69.4 | 2" |
65(75) | 90.4 | 75.4 | 74.9 | 55.8 | 44 | 79.9 | 2-1/2" |
80(90) | 106.5 | 90.5 | 89.9 | 67.3 | 51.5 | 91.5 | 3" |
100(110) | 126.9 | 110.6 | 109.9 | 91.6 | 61.5 | 108 | 4" |
