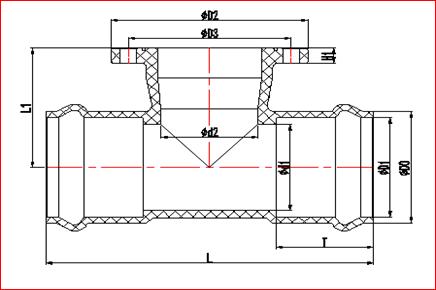

| Size(De) | Dimension（mm） | Noof Screws | |||||||||
| D0 | D1 | D2 | D3 | d1 | d2 | T | H1 | L1 | L | ||
| 110 | 125.70 | 111.50 | 224.00 | 185.00 | 108.00 | 108.00 | 122.00 | 19.00 | 160.00 | 405.00 | 8 |
| 160 | 181.50 | 162.30 | 284.00 | 235.00 | 158.00 | 158.00 | 141.00 | 23.00 | 195.00 | 473.00 | 8 |
| 200 | 225.00 | 202.50 | 338.00 | 300.00 | 197.00 | 197.00 | 152.00 | 26.00 | 230.00 | 540.00 | 8 |
| 225 | 251.50 | 227.50 | 344.00 | 293.00 | 221.00 | 221.00 | 139.00 | 29.50 | 255.00 | 576.00 | 8 |
| 250 | 276.50 | 252.30 | 394.00 | 250.00 | 247.00 | 247.00 | 152.00 | 31.50 | 280.00 | 624.00 | 12 |
| 315 | 347.80 | 318.30 | 443.00 | 398.00 | 312.00 | 312.00 | 198.00 | 36.00 | 330.00 | 788.00 | 12 |
| 160*110 | 181.50 | 162.30 | 224.00 | 185.00 | 158.00 | 108.00 | 141.00 | 19.00 | 192.00 | 446.00 | 8 |
| 200*110 | 225.00 | 202.50 | 224.00 | 185.00 | 197.00 | 108.00 | 152.00 | 19.00 | 215.00 | 488.00 | 8 |
| 200*160 | 225.00 | 202.50 | 284.00 | 235.00 | 197.00 | 158.00 | 152.00 | 23.00 | 220.00 | 500.00 | 8 |
| 225*110 | 251.50 | 227.50 | 224.00 | 185.00 | 221.00 | 108.00 | 139.00 | 19.00 | 233.50 | 466.00 | 8 |
| 225*160 | 251.50 | 227.50 | 284.00 | 235.00 | 221.00 | 158.00 | 139.00 | 23.00 | 245.00 | 504.00 | 8 |
| 250*110 | 276.50 | 252.30 | 224.00 | 185.00 | 247.00 | 108.00 | 152.00 | 19.00 | 245.50 | 500.00 | 8 |
| 250*160 | 276.50 | 252.30 | 284.00 | 235.00 | 247.00 | 158.00 | 152.00 | 23.00 | 257.00 | 538.00 | 8 |
| 250*200 | 276.50 | 252.30 | 338.00 | 300.00 | 247.00 | 197.00 | 152.00 | 26.00 | 268.50 | 578.00 | 8 |
| 315*110 | 347.80 | 318.30 | 224.00 | 185.00 | 312.00 | 108.00 | 198.00 | 19.00 | 277.50 | 592.00 | 8 |
| 315*160 | 347.80 | 318.30 | 284.00 | 235.00 | 312.00 | 158.00 | 198.00 | 23.00 | 288.50 | 626.00 | 8 |
| 315*200 | 347.80 | 318.30 | 338.00 | 300.00 | 312.00 | 197.00 | 198.00 | 26.00 | 299.00 | 667.00 | 8 |
