Product Description

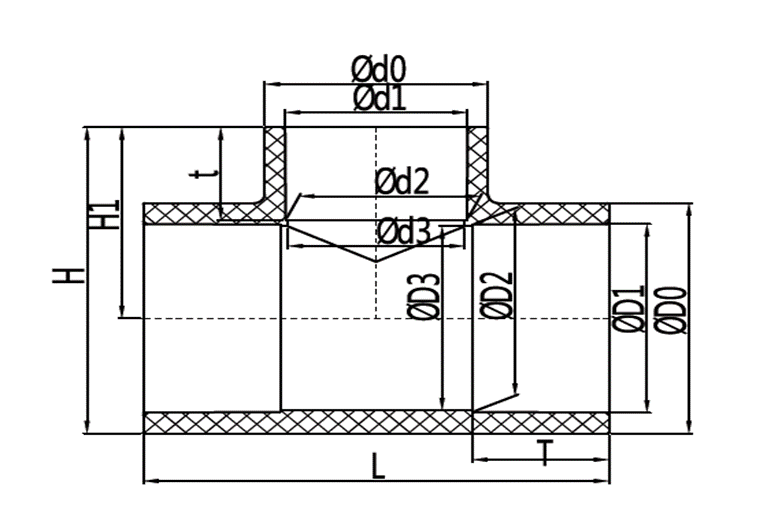

| Size DN(De) | Dimension(mm) | ||||||||||||
| D0 | D1 | D2 | D3 | d0 | d1 | d2 | d3 | T | t | H1 | H | L | |
| 20x15(25*20) | 31.80 | 25.25 | 24.95 | 23.00 | 26.30 | 20.30 | 19.95 | 18.00 | 18.70 | 16.20 | 30.20 | 46.10 | 60.40 |
| 25x15(32*20) | 39.90 | 32.30 | 31.90 | 30.00 | 26.50 | 20.30 | 19.95 | 18.00 | 22.20 | 16.20 | 34.40 | 54.35 | 69.00 |
| 25x20(32*25) | 39.90 | 32.30 | 31.90 | 30.00 | 31.80 | 25.30 | 24.95 | 23.00 | 22.20 | 16.20 | 36.20 | 56.15 | 72.10 |
| 32x15(40*20) | 49.70 | 40.35 | 39.90 | 38.00 | 26.40 | 20.30 | 19.95 | 18.00 | 26.20 | 16.20 | 39.00 | 63.85 | 75.50 |
| 32x20(40*25) | 49.70 | 40.35 | 39.90 | 38.00 | 31.10 | 25.30 | 24.95 | 23.00 | 26.20 | 18.70 | 40.70 | 65.55 | 80.60 |
| 32x25(40*32) | 49.78 | 40.35 | 39.90 | 38.00 | 39.70 | 32.30 | 31.90 | 30.00 | 26.20 | 22.20 | 43.70 | 68.55 | 87.40 |
| 40x15(50*20) | 61.90 | 50.35 | 49.90 | 48.00 | 26.30 | 20.30 | 19.95 | 18.00 | 31.20 | 16.20 | 45.20 | 76.15 | 85.40 |
| 40x20(50*25) | 61.90 | 50.35 | 49.90 | 48.00 | 31.80 | 25.30 | 24.95 | 23.00 | 31.20 | 18.70 | 46.70 | 77.65 | 90.20 |
| 40x25(50*32) | 61.90 | 50.35 | 49.90 | 48.00 | 39.90 | 32.30 | 31.90 | 30.00 | 31.20 | 22.20 | 49.50 | 80.45 | 97.40 |
| 40x32(50*40) | 61.90 | 50.35 | 49.90 | 48.00 | 49.30 | 40.35 | 39.90 | 38.00 | 31.20 | 26.20 | 52.70 | 83.65 | 65.25 |
| 50x15(63*20) | 77.90 | 63.40 | 62.90 | 61.00 | 26.60 | 20.30 | 19.95 | 18.00 | 37.70 | 16.20 | 53.20 | 92.15 | 98.25 |
| 50x20(63*25) | 77.90 | 63.40 | 62.90 | 61.00 | 31.80 | 25.30 | 24.95 | 23.00 | 37.70 | 18.70 | 54.70 | 93.65 | 103.10 |
| 50x25(63*32) | 77.90 | 63.40 | 62.90 | 61.00 | 40.00 | 32.30 | 31.90 | 30.00 | 37.70 | 22.20 | 57.20 | 96.15 | 110.40 |
| 50x32(63*40) | 77.90 | 63.40 | 62.90 | 61.00 | 49.70 | 40.35 | 39.90 | 38.00 | 37.70 | 26.20 | 59.20 | 98.15 | 118.40 |
| 50x40(63*50) | 77.90 | 63.40 | 62.90 | 61.00 | 61.50 | 50.35 | 49.90 | 48.00 | 37.70 | 31.20 | 64.20 | 103.15 | 127.70 |
| 65x15(75*20) | 91.20 | 75.40 | 74.90 | 70.90 | 26.30 | 20.30 | 19.95 | 18.00 | 43.70 | 16.20 | 55.20 | 100.80 | 140.00 |
| 65x20(75*25) | 91.20 | 75.40 | 74.90 | 70.90 | 31.80 | 25.30 | 24.95 | 23.00 | 43.70 | 18.70 | 57.70 | 103.30 | 140.00 |
| 65x25(75*32) | 91.20 | 75.40 | 74.90 | 70.90 | 39.90 | 32.30 | 31.90 | 23.00 | 43.70 | 22.20 | 61.20 | 106.80 | 140.30 |
| 65x32(75*40) | 91.20 | 75.40 | 74.90 | 70.90 | 49.70 | 40.35 | 39.90 | 30.00 | 43.70 | 26.20 | 65.20 | 110.80 | 140.00 |
| 65x40(75*50) | 91.20 | 75.40 | 74.90 | 70.90 | 61.50 | 50.35 | 49.90 | 48.00 | 43.70 | 31.20 | 70.20 | 115.80 | 140.00 |
| 65x50(75*63) | 91.20 | 75.04 | 74.90 | 70.90 | 77.30 | 63.40 | 62.90 | 61.00 | 43.70 | 37.70 | 77.30 | 122.90 | 152.20 |
| 80x20(90*25) | 107.60 | 90.50 | 89.90 | 85.90 | 31.80 | 25.30 | 24.95 | 23.00 | 51.20 | 18.70 | 65.20 | 119.00 | 167.80 |
| 80x25(90*32) | 107.60 | 90.50 | 89.90 | 85.90 | 39.50 | 32.30 | 31.90 | 23.00 | 51.20 | 22.20 | 68.70 | 122.50 | 168.20 |
| 80x32(90*40) | 107.60 | 90.50 | 89.90 | 85.90 | 49.50 | 40.35 | 39.90 | 38.00 | 51.20 | 26.20 | 72.70 | 126.50 | 168.20 |
| 80x40(90*50) | 107.60 | 90.50 | 89.90 | 85.90 | 61.90 | 50.35 | 49.90 | 48.00 | 51.20 | 31.20 | 77.70 | 131.50 | 168.00 |
| 80x50(90*63) | 107.60 | 90.50 | 89.90 | 85.90 | 77.30 | 63.40 | 62.90 | 61.00 | 51.20 | 37.70 | 84.20 | 138.00 | 168.20 |
| 80x65(90*75) | 107.60 | 90.50 | 89.90 | 85.90 | 91.20 | 75.40 | 74.90 | 70.90 | 51.20 | 43.70 | 92.30 | 146.10 | 180.70 |
| 100x20(110*25) | 127.00 | 110.60 | 109.90 | 103.90 | 31.80 | 25.30 | 24.95 | 23.00 | 61.20 | 18.70 | 74.20 | 137.70 | 189.00 |
| 100x25(110*32) | 127.00 | 110.60 | 109.90 | 103.90 | 40.10 | 32.30 | 31.90 | 23.00 | 61.20 | 22.20 | 77.70 | 141.20 | 190.00 |
| 100x32(110*40) | 127.00 | 110.60 | 109.90 | 103.90 | 49.70 | 40.35 | 39.90 | 38.00 | 61.20 | 26.20 | 81.70 | 145.20 | 190.50 |
| 100x40(110*50) | 127.00 | 110.60 | 109.90 | 103.90 | 61.90 | 50.35 | 49.90 | 48.00 | 61.20 | 31.20 | 86.70 | 150.20 | 189.00 |
| 100x50(110*63) | 127.00 | 110.60 | 109.90 | 103.90 | 77.30 | 63.40 | 62.90 | 61.00 | 61.20 | 37.70 | 93.20 | 156.70 | 190.00 |
| 100x65(110*75) | 127.00 | 110.60 | 109.90 | 103.90 | 91.20 | 75.40 | 74.90 | 70.90 | 61.20 | 43.70 | 99.00 | 162.50 | 201.50 |
| 100x80(110*90) | 127.00 | 110.60 | 109.90 | 103.90 | 107.60 | 90.50 | 89.90 | 85.90 | 61.20 | 51.20 | 110.35 | 173.85 | 214.80 |
| De125*110 | 144.30 | 125.70 | 124.90 | 118.90 | 127.00 | 110.60 | 109.90 | 103.90 | 68.70 | 61.20 | 127.80 | 199.95 | 251.00 |
| 125x40(140*50) | 161.60 | 140.75 | 139.90 | 133.90 | 61.60 | 50.35 | 49.90 | 48.00 | 76.20 | 31.20 | 101.70 | 182.50 | 247.40 |
| 125x50(140*63) | 161.60 | 140.75 | 139.90 | 133.90 | 77.30 | 63.40 | 62.90 | 61.00 | 76.20 | 37.70 | 108.20 | 189.00 | 247.00 |
| 125x65(140*75) | 161.60 | 140.75 | 139.90 | 133.90 | 91.20 | 75.40 | 74.90 | 70.90 | 76.20 | 43.70 | 114.00 | 194.80 | 248.00 |
| 125x80(140*90) | 161.60 | 140.75 | 139.90 | 133.90 | 107.40 | 90.50 | 89.90 | 85.90 | 76.20 | 51.20 | 121.50 | 202.30 | 247.00 |
| 125x100(140*110) | 161.60 | 140.75 | 139.90 | 133.90 | 127.00 | 110.60 | 109.90 | 103.90 | 76.20 | 61.20 | 136.70 | 217.50 | 266.40 |
| De140*125 | 161.60 | 140.75 | 139.90 | 133.90 | 144.30 | 125.70 | 124.90 | 118.90 | 76.20 | 68.70 | 142.40 | 223.20 | 280.50 |
| 150x50(160*63) | 184.60 | 160.80 | 159.90 | 153.90 | 77.70 | 63.40 | 62.90 | 61.00 | 86.20 | 37.70 | 118.20 | 210.50 | 286.00 |
| 150x65(160*75) | 184.60 | 160.80 | 159.90 | 153.90 | 89.90 | 75.40 | 74.90 | 70.90 | 86.20 | 43.70 | 216.30 | 285.00 | |
| 150x80(160*90) | 184.60 | 160.80 | 159.90 | 153.90 | 107.60 | 90.50 | 89.90 | 85.90 | 86.20 | 51.20 | 131.50 | 223.80 | 285.50 |
| 150x100(160*110) | 184.60 | 160.80 | 159.90 | 153.90 | 127.30 | 110.60 | 109.90 | 103.90 | 86.20 | 61.20 | 142.50 | 234.80 | 286.00 |
| 150x125(160*140) | 184.60 | 160.80 | 159.90 | 153.90 | 161.80 | 140.75 | 139.90 | 133.90 | 86.20 | 76.20 | 161.50 | 253.80 | 315.50 |
| De180*160 | 202.60 | 180.80 | 180.10 | 178.50 | 184.60 | 160.80 | 159.90 | 153.90 | 97.00 | 86.20 | 180.00 | 281.30 | 326.00 |
| De200*90 | 230.50 | 201.00 | 199.90 | 193.50 | 107.70 | 90.50 | 89.90 | 85.90 | 106.20 | 51.20 | 151.50 | 266.75 | 356.50 |
| De200*110 | 230.50 | 201.00 | 199.90 | 193.50 | 127.50 | 110.60 | 109.90 | 103.90 | 106.20 | 61.20 | 162.50 | 277.75 | 357.00 |
| De200*140 | 230.50 | 201.00 | 199.90 | 193.50 | 162.20 | 140.75 | 139.90 | 133.90 | 106.20 | 76.20 | 178.00 | 293.25 | 356.50 |
| De200*160 | 230.50 | 201.00 | 199.90 | 193.50 | 184.60 | 160.80 | 159.90 | 153.90 | 106.20 | 86.20 | 197.50 | 312.75 | 415.50 |
| 200x50(225*63) | 259.40 | 226.20 | 224.90 | 216.90 | 77.30 | 63.40 | 62.90 | 61.00 | 118.70 | 37.70 | 149.70 | 279.40 | 384.00 |
| 200x65(225*75) | 259.40 | 226.20 | 224.90 | 216.90 | 91.20 | 75.40 | 74.90 | 70.90 | 118.70 | 43.70 | 155.50 | 285.20 | 384.00 |
| 200x80(225*90) | 259.40 | 226.20 | 224.90 | 216.90 | 107.60 | 90.50 | 89.90 | 85.90 | 118.70 | 51.20 | 163.00 | 292.70 | 384.00 |
| 200x100(225*110) | 259.40 | 226.20 | 224.90 | 216.90 | 127.00 | 110.60 | 109.90 | 103.90 | 118.70 | 61.20 | 174.00 | 303.70 | 384.00 |
| 200x125(225*140) | 259.40 | 226.20 | 224.90 | 216.90 | 161.90 | 140.75 | 139.90 | 133.90 | 118.70 | 76.20 | 189.50 | 319.20 | 384.00 |
| 200x150(225*160) | 259.40 | 226.20 | 224.90 | 216.90 | 185.00 | 160.80 | 159.90 | 153.90 | 118.70 | 86.20 | 209.70 | 339.40 | 403.00 |
| De225*200 | 259.40 | 226.20 | 224.90 | 216.90 | 230.50 | 201.00 | 199.90 | 193.50 | 118.70 | 106.20 | 231.50 | 361.20 | 384.00 |
| De250*63 | 281.10 | 251.30 | 249.90 | 241.90 | 77.30 | 63.40 | 62.90 | 61.00 | 132.00 | 37.70 | 162.00 | 302.55 | 429.50 |
| De250*75 | 281.10 | 251.30 | 249.90 | 241.90 | 91.20 | 75.40 | 74.90 | 70.90 | 132.00 | 43.70 | 167.80 | 308.35 | 429.50 |
| De250*90 | 281.10 | 251.30 | 249.90 | 241.90 | 107.80 | 90.50 | 89.90 | 85.90 | 132.00 | 51.20 | 175.30 | 315.85 | 429.50 |
| De250*110 | 281.10 | 251.30 | 249.90 | 241.90 | 127.00 | 110.60 | 109.90 | 103.90 | 132.00 | 61.20 | 186.30 | 326.85 | 429.50 |
| De250*140 | 281.10 | 251.90 | 249.90 | 241.90 | 161.60 | 140.75 | 139.90 | 153.90 | 132.00 | 76.20 | 201.80 | 342.35 | 429.50 |
| De250*160 | 281.10 | 251.30 | 249.90 | 241.90 | 184.60 | 160.80 | 159.90 | 178.50 | 132.00 | 86.20 | 211.80 | 352.35 | 429.50 |
| De250*225 | 287.90 | 251.30 | 249.90 | 241.90 | 259.40 | 226.20 | 224.90 | 218.90 | 132.00 | 118.70 | 254.00 | 397.94 | 429.50 |
| De280*225 | 314.80 | 281.50 | 279.90 | 278.00 | 259.20 | 226.20 | 224.90 | 218.90 | 147.00 | 132.00 | 276.00 | 433.40 | 526.50 |
| 300x80(315*90) | 354.70 | 316.70 | 314.90 | 306.90 | 107.60 | 90.50 | 89.90 | 85.90 | 163.70 | 51.20 | 198.70 | 376.05 | 445.90 |
| 300x100(315*110) | 354.70 | 316.70 | 314.90 | 306.90 | 127.00 | 110.60 | 109.90 | 103.90 | 163.70 | 61.20 | 209.70 | 387.05 | 600.10 |
| 300x125(315*140) | 354.70 | 316.70 | 314.90 | 306.90 | 161.60 | 140.75 | 139.90 | 133.90 | 163.70 | 76.20 | 225.20 | 402.55 | 600.10 |
| 300x150（315*160） | 354.70 | 316.70 | 314.90 | 306.90 | 184.60 | 160.80 | 159.90 | 153.90 | 163.70 | 86.20 | 235.20 | 412.55 | 600.10 |
| De315*200 | 354.70 | 316.70 | 314.90 | 306.90 | 230.50 | 201.00 | 199.90 | 193.50 | 163.70 | 106.20 | 268.50 | 445.85 | 538.00 |
| 300x200(315*225) | 354.70 | 316.70 | 314.90 | 306.90 | 259.40 | 226.20 | 224.90 | 220.90 | 163.70 | 118.70 | 269.20 | 446.55 | 600.10 |
| De315*250 | 354.70 | 316.70 | 314.90 | 306.90 | 288.60 | 251.30 | 249.90 | 241.90 | 163.70 | 132.00 | 282.00 | 459.35 | 644.00 |
| 300x250(315*280) | 391.00 | 316.70 | 314.90 | 306.90 | 314.50 | 281.50 | 279.90 | 278.00 | 163.70 | 147.00 | 321.50 | 517.00 | 647.00 |
| De355*200 | 388.00 | 356.80 | 355.00 | 326.00 | 230.50 | 201.00 | 199.90 | 193.50 | 184.00 | 106.20 | 285.50 | 478.00 | 590.50 |
| De355*250 | 388.00 | 356.80 | 355.00 | 326.00 | 281.10 | 251.30 | 249.90 | 241.90 | 184.00 | 132.00 | 311.50 | 504.60 | 639.00 |
| 350x300(355*315) | 388.00 | 356.80 | 400.00 | 326.00 | 344.20 | 316.70 | 314.90 | 306.90 | 184.00 | 163.70 | 350.60 | 544.60 | 693.00 |
| De400*200 | 432.70 | 401.60 | 400.00 | 398.50 | 220.90 | 200.90 | 199.85 | 197.00 | 107.00 | 208.00 | 318.60 | 534.95 | 623.00 |
| De400*250 | 432.40 | 401.60 | 400.00 | 398.50 | 273.50 | 251.15 | 249.41 | 247.00 | 132.00 | 208.00 | 342.80 | 559.00 | 672.00 |
| 400x300(400*315) | 432.70 | 401.60 | 400.00 | 398.50 | 344.50 | 316.55 | 315.05 | 312.00 | 165.00 | 208.00 | 370.00 | 586.35 | 752.00 |
