Product Description

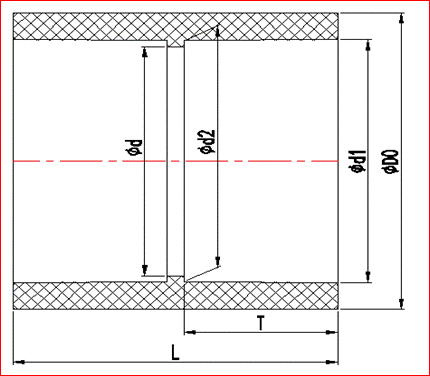

Size DN(De) | Dimension(mm) | |||||
D0 | D1 | D2 | d | T | L | |
15(20) | 26.30 | 20.30 | 19.95 | 18.00 | 16.20 | 34.40 |
20(25) | 31.80 | 25.30 | 24.95 | 23.00 | 18.70 | 39.00 |
25(32) | 39.90 | 32.30 | 31.90 | 30.00 | 22.20 | 46.40 |
32(40) | 49.40 | 40.40 | 39.90 | 38.00 | 26.20 | 54.40 |
40(50) | 61.40 | 50.40 | 49.90 | 48.00 | 31.20 | 64.40 |
50(63) | 77.10 | 63.40 | 62.90 | 61.00 | 37.70 | 77.10 |
65(75) | 91.00 | 75.40 | 74.90 | 68.20 | 43.70 | 90.00 |
80(90) | 107.60 | 90.50 | 89.90 | 83.80 | 51.20 | 106.40 |
100(110) | 127.20 | 110.60 | 109.90 | 103.00 | 61.20 | 128.30 |
De125 | 144.30 | 125.70 | 124.90 | 118.60 | 68.70 | 144.00 |
125(140) | 161.60 | 140.80 | 139.90 | 133.80 | 76.20 | 159.50 |
150(160) | 184.60 | 160.80 | 159.90 | 153.80 | 86.20 | 179.70 |
De180 | 202.60 | 180.90 | 179.90 | 178.50 | 97.00 | 199.00 |
De200 | 230.30 | 201.00 | 199.90 | 193.50 | 106.20 | 217.50 |
200(225) | 259.40 | 226.20 | 224.90 | 216.90 | 118.70 | 243.00 |
De250 | 287.90 | 251.30 | 249.90 | 241.90 | 131.20 | 268.30 |
250(280) | 314.50 | 281.50 | 279.90 | 278.00 | 147.00 | 300.00 |
300(315) | 354.00 | 316.70 | 314.90 | 306.90 | 163.70 | 335.40 |
350(355) | 384.25 | 356.80 | 355.00 | 326.00 | 184.00 | 373.50 |
400(400) | 430.15 | 402.00 | 400.00 | 369.80 | 205.50 | 422.80 |
