Product Description

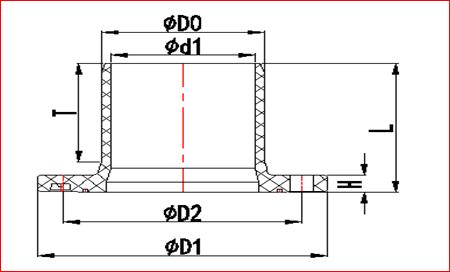

| Size(De) | Dimension（mm） | Noof Screws | |||||||
| D0 | D1 | D2 | D3 | d1 | T | H | L | ||
| 63 | 63.20 | 164.00 | 125.00 | 62.00 | 102.00 | 17.30 | 127.00 | 4 | 10 |
| 75 | 75.30 | 184.00 | 145.00 | 73.50 | 110.00 | 17.00 | 137.50 | 4 | 10 |
| 90 | 90.30 | 198.50 | 160.00 | 88.50 | 115.00 | 19.00 | 144.00 | 8 | 10 |
| 110 | 110.30 | 223.50 | 180.00 | 108.00 | 128.00 | 20.00 | 154.00 | 8 | 10 |
| 160 | 160.40 | 283.50 | 240.00 | 123.00 | 145.00 | 23.00 | 190.00 | 8 | 10 |
| 200 | 200.50 | 338.00 | 295.00 | 158.00 | 160.00 | 27.00 | 203.50 | 8 | 10 |
| 225 | 225.50 | 345.00 | 295.00 | 197.00 | 167.00 | 29.50 | 216.00 | 8 | 10 |
| 250 | 250.50 | 393.00 | 350.00 | 221.00 | 180.00 | 31.00 | 232.00 | 12 | 10 |
| 315 | 315.60 | 443.50 | 400.00 | 312.00 | 207.00 | 35.50 | 268.00 | 12 | 10 |
| 355 | 355.60 | 510.00 | 460.00 | 326.00 | 235.00 | 42.50 | 300.00 | 16 | 10 |
| 400 | 400.60 | 568.20 | 510.00 | 568.20 | 245.00 | 41.00 | 314.00 | 16 | 10 |
